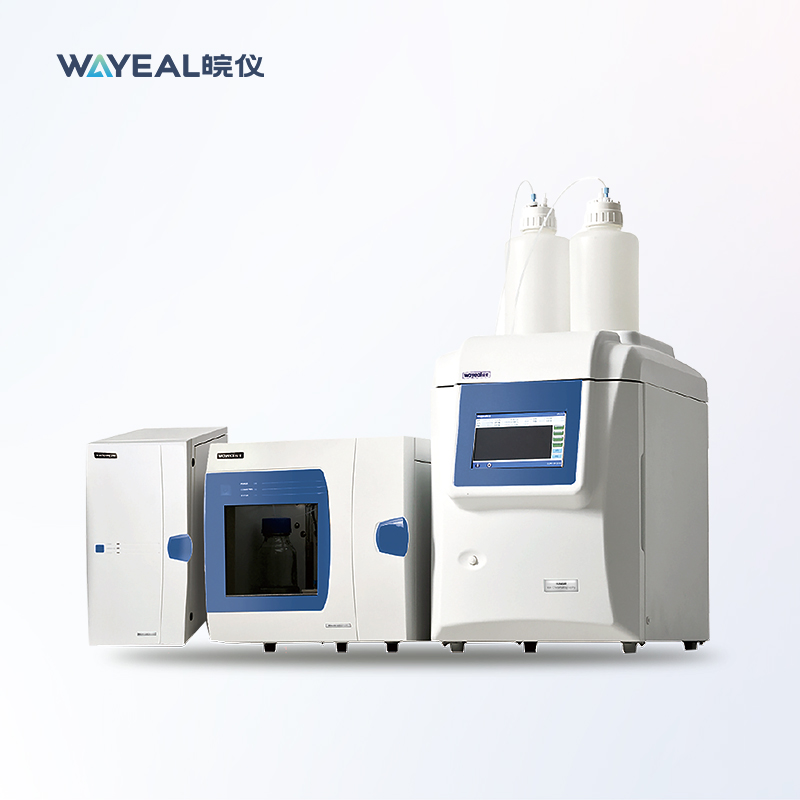

Wayeal IC6200 Foods and Beverages Use Ion Chromatography With Conductivity Detector
Introduction of Ion Chromatography Instrument
Ion chromatography, a form of liquid chromatography, measures concentrations of ionic species by separating them based on their interaction with a chromatographic column stationary phase. Ionic species separate differently, depending on species type and size. Sample solutions pass through a pressurized chromatographic column where ions are retained by column constituents due to ionic interactions. As an ion extraction liquid, known as eluent, runs through the column, the retained ions begin separating from the column and eventually reach the detector where it produces a change in the signal which is represented by a peak in the chromatogram. Ions of interest can be identified, based on their retention time and quantitated, based on the detector’s response and standards to those ions.
Features of Ion Chromatography Instrument
1. Intergrated design and compact structure, minimizing connections between components
2. 7.0" high brightness LCD touch operation interface, synchronized with the chromatography workstation, clearly displays the working statusOne-button operation, the system can realize automatic cleaning after the analysis is completed to ensure the cleaning effect
3. One-touch maintenance": one-touch operation, the system can realize automatic maintenance of the instrument without manual operation, extending the service life of instrument.
4. Full PEEK pump and electric injection valve.
5. All-plastic non-metallic flow path
6. Electrolytic self-regenerating membrane suppressor
7. High precision temperatuer-controlled conductivity Detector
Parameters of Ion Chromatography Instrument
| Wayeal IC6200 Foods Beverages Ion Chromatography With Conductivity Detector |
| System Parameter | |
| Qualitative Repeatability | ≤0.5% |
| Quantitative Repeatability | ≤1% |
| Pump System | |
| Flow Rate | (0.001～10.000)mL/min |
| Pump Head Pressure Resistance | (0 ~ 35) MPa |
| Flow Rate Setting Inaccuracy | <0.1% |
| Flow Stability | <0.1% |
| Pressure Display Accuracy | 0.01Mpa |
| Pressure Pulsation | <0.5% |
| Conductivity Detector | |
| Baseline Noise | ≤0.1%FS |
| Baseline Drift | ≤0.5%FS |
| Minimum Detectable Concentration (Cl) | ≤0.0002μg/mL |
| Minimum Detection Concentration (Li) | ≤0.0001μg/mL |
| Conductivity Cell Volume | ≤ 0.6μL |
| Conductivity Detection Range | 0-15000μS/cm |
| Detector Resolution | 0.00238nS/cm |
| Conductivity Cell Temperature Setting Error | ±0.01°C |
| Resolution of Conductivity Cell Temperature Display | 0.001°C |
| Suppressor | |
| Constant Current Source Range | 0-500mA in 0.1mA increments |
| Column Oven | |
| Temperature Range | Room temperature +5°C~85°C |
| Control Temperature Stability | ≤ 0.1°C |
| Autosampler | |
| Number of Sample Vials | ≥ 120 (1.5mL standard sample bottle) |
| Repeatability | Full loop injection < 0.3% RSD, Partial injection < 0.5% RSD, Non-destructive injection < 1 % RSD (injection volume > 5uL) |
| Syringe Size | Standard: 500μL; optional; 250μL, 1000μL, 2500μL |
| Loop Size | Standard: 100μL; optional: 20μL, 50μL, 200μL |
| Linearity | >0.999 |
| Cross-contamination | <0.01% |
| Eluent Generator | |
| Flow Rate Range | 0.001 to 3.000ml/min |
| Eluent Concentration Range | KOH, MSA-0.1 to 100mM |
| Concentration Accuracy | 0.1mM |
| Original Concentration of Electrolyte | 25% KOH/MSA |
| Volume of Electrolyte | 1000mL |
| Maximum Working Pressure | 21MPa (3000psi) |
| Gradient Accuracy | 1.5% |
Industry Application of Ion Chromatography Instrument
Some typical applications of ion chromatography include:
-
Drinking water analysis for pollution and other constituents
-
Determination of water chemistries in aquatic ecosystems
-
Analysis of residual limits in pharmaceuticals
-
Determination of additives and components in foods and beverages
-
Isolation of select proteins
-
Trace anions in organic solvents
-
Determination of ammonium, amines and other ions in industrial wastewater
-
Trace ion analysis in electronics
