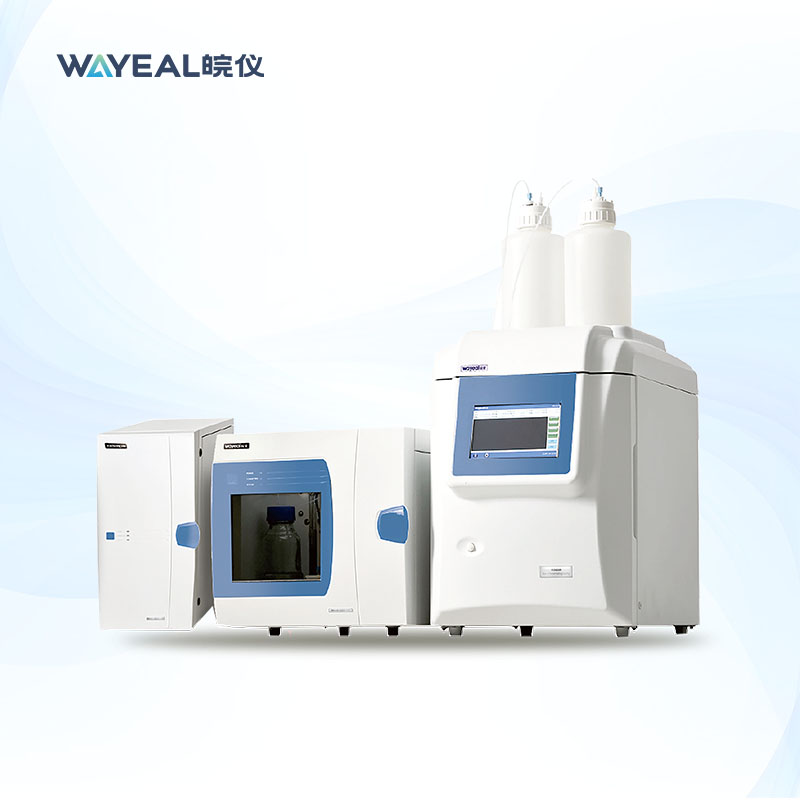

Self-developed Chromatographpy Workstation Integrated Ion Chromatography Instrument
Introduction of Ion Chromatography Instrument
Ion chromatography (IC) analysis is a simple, fast and accurate way to ensure that your product is clean, safe and of the highest quality using the separation and quantification of anions and cations using High Performance Liquid Chromatography (HPLC) and a conductivity detector.
Features of Ion Chromatography Instrument
1. Intergrated apperance design, high brightness LCD full touch GUI controller
2. High degree of automation "One Key Rinse" and "One Key Maintenance" automatic maintenance function.
3. Higher intergration: Support optional parts upgrade to 2D system and multi-detector combination.
4. Full PEEK pump and electric injection valve.
5. Powerful and convenient chromatpgraphy workstation
6. High precision temperatur-controlled conductivity detector.
Technical Data of Ion Chromatography Instrument
| In Line Eluent Generation Ion Chromatograph Instruments With Conductivity Detector |
| System Parameter | |
| Qualitative Repeatability | ≤0.5% |
| Quantitative Repeatability | ≤1% |
| Pump System | |
| Flow Rate | (0.001～10.000)mL/min |
| Pump Head Pressure Resistance | (0 ~ 35) Mpa |
| Flow Rate Setting Inaccuracy | <0.1% |
| Flow Stability | <0.1% |
| Pressure Display Accuracy | 0.01Mpa |
| Pressure Pulsation | <0.5% |
| Conductivity Detector | |
| Baseline Noise | ≤0.1%FS |
| Baseline Drift | ≤0.5%FS |
| Minimum Detectable Concentration (Cl) | ≤0.0002μg/mL |
| Minimum Detection Concentration (Li) | ≤0.0001μg/mL |
| Conductivity Cell Volume | ≤ 0.6μL |
| Conductivity Detection Range | 0-15000μS/cm |
| Detector Resolution | 0.00238nS/cm |
| Conductivity Cell Temperature Setting Error | ±0.01°C |
| Resolution of Conductivity Cell Temperature Display | 0.001°C |
| Suppressor | |
| Constant Current Source Range | 0-500mA in 0.1mA increments |
| Column Oven | |
| Temperature Range | Room temperature +5°C~85°C |
| Control Temperature Stability | ≤ 0.1°C |
| Autosampler | |
| Number of Sample Vials | ≥ 120 (1.5mL standard sample bottle) |
| Repeatability | Full loop injection < 0.3% RSD, Partial injection < 0.5% RSD, Non-destructive injection < 1 % RSD (injection volume > 5μL) |
| Syringe Size | Standard: 500μL; optional; 250μL, 1000μL, 2500μL |
| Loop Size | Standard: 100μL; optional: 20μL, 50μL, 200μL |
| Linearity | >0.999 |
| Cross-contamination | <0.01% |
| Eluent Generator | |
| Flow Rate Range | 0.001 to 3.000mL/min |
| Eluent Concentration Range | KOH, MSA-0.1 to 100mM |
| Concentration Accuracy | 0.1mM |
| Original Concentration of Electrolyte | 25% KOH/MSA |
| Volume of Electrolyte | 1000mL |
| Maximum Working Pressure | 21Mpa (3000psi) |
| Gradient Accuracy | 1.5% |
Industry Applications of Ion Chromatography Instrument
1. Carbohydrates, alditols, alcohols, and glycols commonly found in fermentation
2. Analysis of carbohydrates in H. influenzae cultivation using complex medium with glucose as the major carbon source.
3. Carbohydrates and alcohols
4. Amino Acids, Antibiotics
