Introduction of Helium Leak Detector:
A helium detector is a type of leak detector that is specifically designed to detect helium gas. Helium is often used as a tracer gas because it is non-toxic, non-flammable, and does not react with other gases. Helium detectors are highly sensitive and can detect very small leaks.
Technical Parameters of Helium Leak Detector:

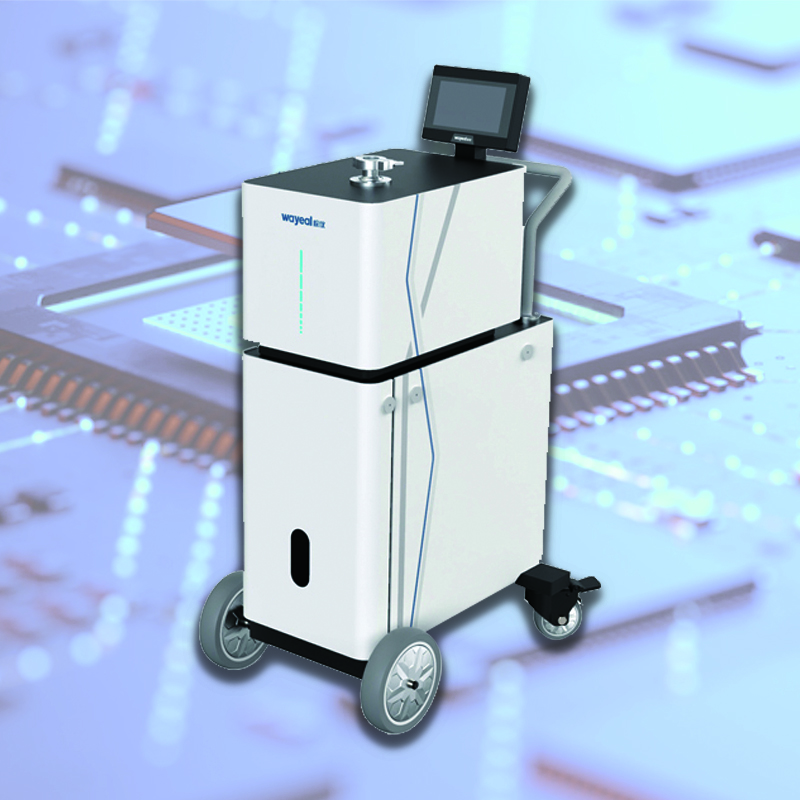

| SFJ-16D Mobile Helium Leak Detection Equipment Helium Leak Detector Price |
| Product Name | Helium Leak Detector |
| Detection Method | Helium Mass Spectrometer |
| Leak Detection Port | DN25KF |
| Leak Rate Display | Numbers, Bar Charts, Graphs |
| Response Time(s) | <1s |
| User Interface | 7inch Color Touch Screen |
| Operating temperature | 0~40°C |
| Max Allowable Leak Detection Pressure (Pa) | 1800 |
| Communication Interface | RS232/485, LAN |
| Detectable Quality | 2, 3, 4 (H2, He-3, He-4) |
| Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode | 5.0*10 -13 Pa·m3/s |
| Mini Leak Detection Rate(Pa·m3/s)/Vacuum Mode | 2.5*10-9 Pa·m3/s |
| Startup Time (min) | ≤1.58 |
| Backing Pump | Scroll Vacuum Pump |
| Diamension | 475*714*1168mm |
| Power Supply | AC220V, 50Hz/60Hz |
| Language | Chinese/English |
Applications of Helium Leak Detector:
Helium leak detectors are widely used in various industries, including aerospace, automotive, and semiconductor manufacturing. They are essential tools for ensuring the safety and reliability of various systems, and they can help prevent costly downtime and repairs.
Vacuum systems: Helium leak detectors are used to test the integrity of vacuum systems such as those used in semiconductor manufacturing, aerospace, and research facilities. They are used to detect leaks in vacuum chambers, valves, and other components of the system.
Refrigeration and air conditioning systems: Helium leak detectors are used to detect leaks in refrigeration and air conditioning systems. They are used to locate leaks in compressors, condensers, evaporators, and other components of the system.
Methods of Helium Leak Detection (Helium Leak Detector)

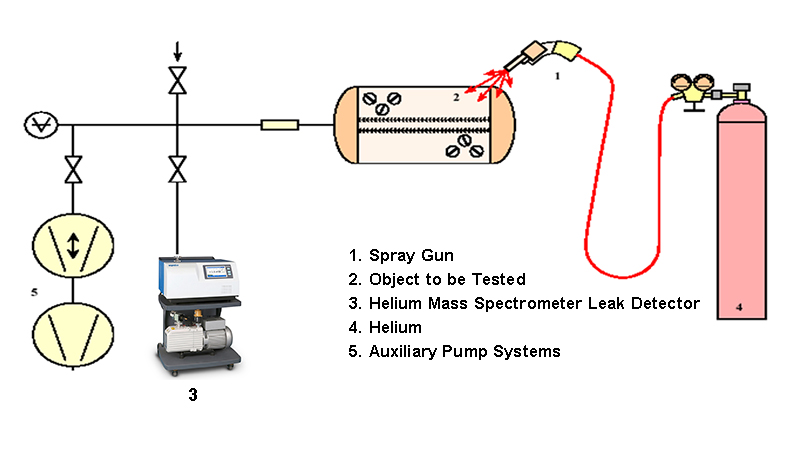

Helium Vacuum Method
Helium Hood Method
Negative Pressure Method

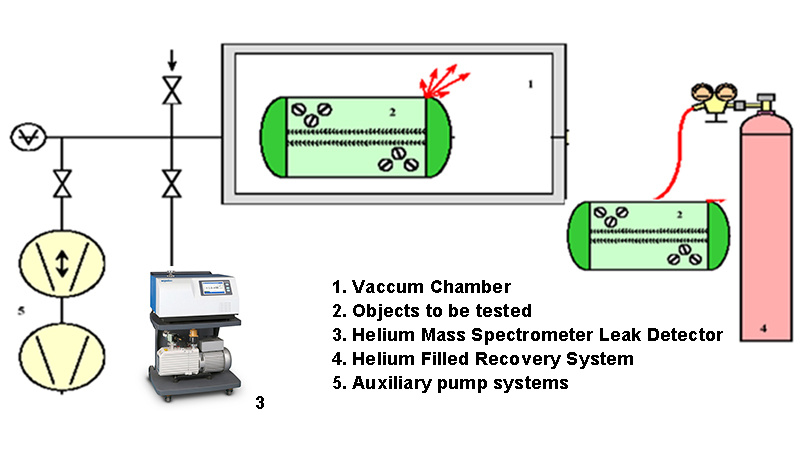

Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

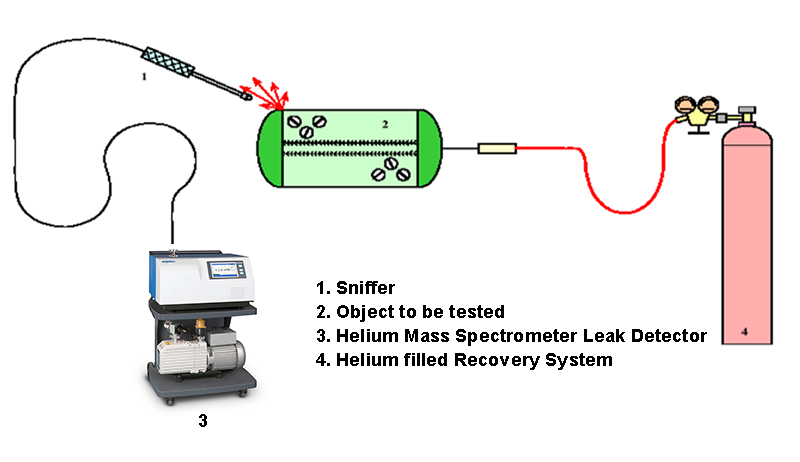

Sniffer Method
