Introduction of Helium Leak Detector:

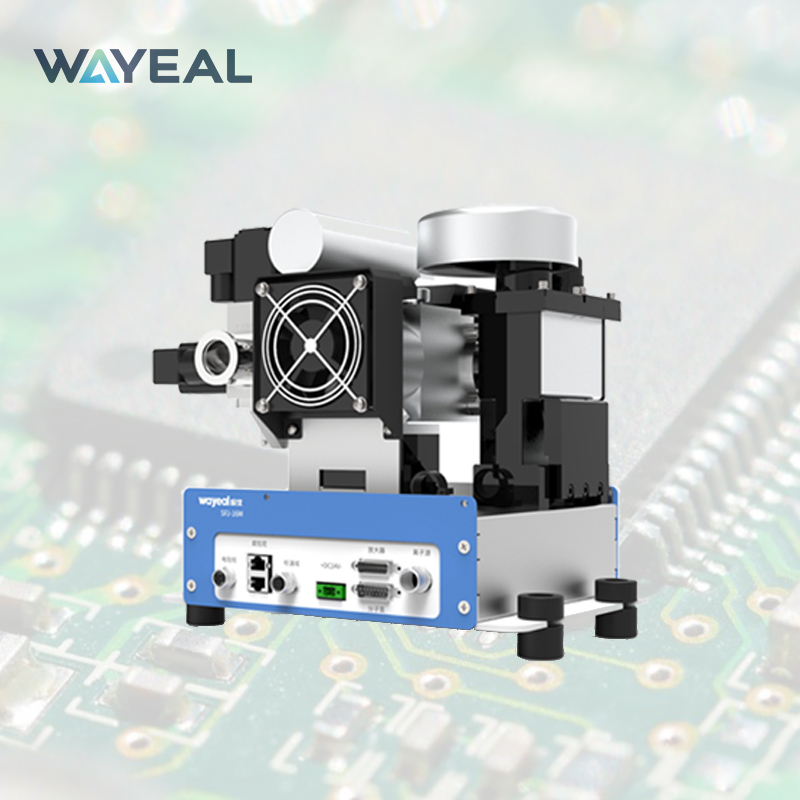

Helium Leak Detector
The helium leak detector is a state-of-the-art product designed for accurate and reliable detection of vacuum leaks. It utilizes helium mass spectrometer technology to achieve high sensitivity and precision, making it an essential tool for various industries and applications. Helium leak detection is a highly sensitive detection technique, particularly developed to identify extremely small leaks which cannot be detected with standard leak test methods.
Technical Parameters of Helium Leak Detector:
| SFJ-16M+ Wide Applications of Modular Helium Leak Detector Machine Price |
| Product Name | Helium Leak Detector |
| Detection Method | Helium Mass Spectrometer |
| Leak Detection Port | DN25KF |
| Leak Rate Display | Numbers, Bar Charts, Graphs |
| Response Time(s) | <1s |
| User Interface | 5inch Color Touch Screen |
| Operating temperature | 0~40°C |
| Max Allowable Leak Detection Pressure (Pa) | 1800 |
| Communication Interface | RS232/485, LAN |
| Detectable Quality | 2, 3, 4 (H2, He-3, He-4) |
| Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode | 2.5*10 -9 Pa.m3/s |
| Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode | 5.0*10-13 Pa.m3/s |
| Startup Time (s) | <95 |
| Diamension | 375*283*327mm |
| Power Supply | DC24V (±5%) |
| Language | Chinese/English |
Applications of Helium Leak Detector:
The SFJ-16M+ helium leak detector is equipped with both sniffer leak detection and vacuum leak detection capabilities, making it suitable for a wide range of applications. It can quickly and accurately detect even the smallest helium leaks, ensuring the safety and quality of products. Helium leak detection has a wide range of applications and has been found to be an important process in various industries such as automotive, aerospace, HVAC, refrigeration and semiconductor manufacturing. From detecting leaks in refrigeration systems to finding leaks in underground pipelines, helium leak testing has shown efficacy across the everchanging sectors.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Helium Hood Method
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
