Introduction of Helium Leak Detector
A helium mass spectrometer leak detector is a leak detector commonly used to detect and locate small leaks. It typically uses a vacuum chamber in which a sealed container filled with helium is placed. Helium leaks out of the container, and the rate of the leak is detected by a mass spectrometer.
Product Parameters of Helium Leak Detector

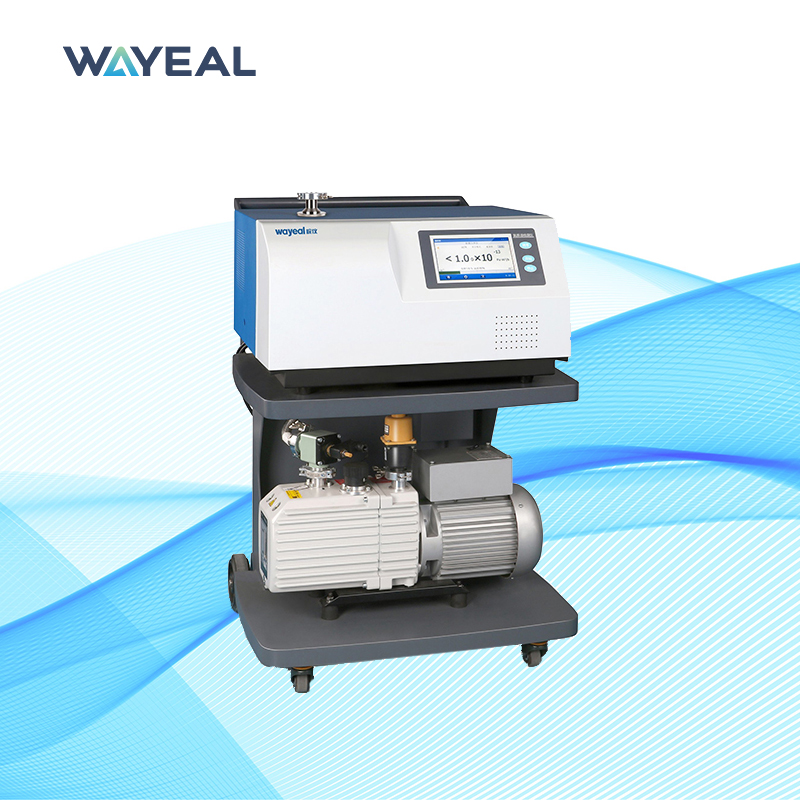

| Wayeal SFJ-16C Modular Helium Vacuum Leak Detector for Clear Energy Industry |
| Performance Indicators | Model | SFJ-16C |
| Minimum detectable leakage rate (Pa. m3/s)/ Vacuum Mode | 5.0*10-13 |
| Minimum Detectable Leakage Rate (Pa.m3/s)/Sniffer Mode | 2.5*10-9 |
| Maximum Detectable Leakage Rate (Pa) | 1800 |
| Response Time (s) | <1 |
| Start-up Time (min) | ≤ 95s |
| Detectable Quality | 2, 3, 4 (H2, He-3, He-4) |
| Man-machine Interface | 7" color LCD Touch Screen |
| Ion Source | 2pcs, Iridium-coated Yttrium Oxide, Automatic Switching |
| Basic Configuration | Pre-stage Pumps | Optional |
| I/O Input/ Output Interface | 8 Inputs, 8 Outputs |
| Communication Interface | RS232/485, LAN |
| MES Interface | Standard |
| (Physical Size )W*D*H | 755*467*1180mm |
| Specifications of Leak Detection Hole | DN25KF |
| Power Supply | AC220V, 50HZ/60HZ |
| Operating Temperature | 0~40°C |
| Display Language | Chinese/English |
| Leakage Rate Display | Figure, Bar Chat, Curve Chat |
Features of Helium Leak Detector
1. Rapid and accurate detection of helium and hydrogen by helium injection mode, sniffer mode and others.
2. Automatic evacuation pressure and time setting, high leak detection efficiency;
3. Suitable for industrial leak detection in various high requirements and hash environment.
4. Wireless remote-control function (optional);
Applications of Helium Leak Detector
1. Automobile Industry
1.1 Automotive refrigeration industry
1.2 Automotive Fuel Industry
1.3 Automotive New Energy
2. Hydrogen Energy
2.1 Hydrogen Cylinder Industry
2.2 Hydrogen Energy Components
3. Home Refrigeration Industry
4. Helium Recovery Systems
Helium Leak Detection Methods
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Sniffer Method
