Introduction of Helium Leak Detector:
Helium Leak Detector is a vaccum leak detector and helium leak testing device, designed to quickly and accurately detect vacuum leaks. Helium leak detectors are the ideal solution for leak detection and leak-tightness testing under vacuum. The helium is safe and a small, light molecule which is suitable for detecting micro leaks. The detection range of Helium in vacuum tests lies in 10-13 Pa · m3/s. Helium leak detection is extremely accurate, quantitative and repeatable. Fast cycle times are a further advantage.
Technical Parameters of Helium Leak Detector:
| Wayeal SFJ-231d Fast Response Time Helium Leak Detector Machine Factory |
| Product Name | Helium Leak Detector |
| Diamension | 645*678*965mm |
| Detectable Quality | 2, 3, 4 (H2, He3, He4) |
| Max Allowable Leak Detection Pressure (Pa) | 1500 |
| Detection Method | Helium Leak Detection |
| Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode | 5*10-9 Pa.m3/s |
| Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode | 5*10-13 Pa.m3/s |
| MES Interface | Standard |
| Start Time (min) | ≤2 |
| Leak rate display | Numbers, Bar Charts, Graphs |
| User Interface | 7inch Color Touch Screen |
| Ion Source | 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching |
| Communication Interface | RS232/485, USB*2 |
| Leak Port | DN25KF |
| Power Supply | AC220V, 50Hz/60Hz |
| Language | Chinese and English |
Support and Services: Helium Leak Detector Technical Support and Service
We provide reliable technical support and service for the Helium Leak Detector product. Our team of experts is available to answer questions and provide guidance on proper usage of the product, as well as provide any necessary repairs or maintenance services. We offer both on-site and remote technical support and service, so you can be sure you’ll have the help you need when you need it.
Methods of Helium Leak Detection
Negative Pressure Method

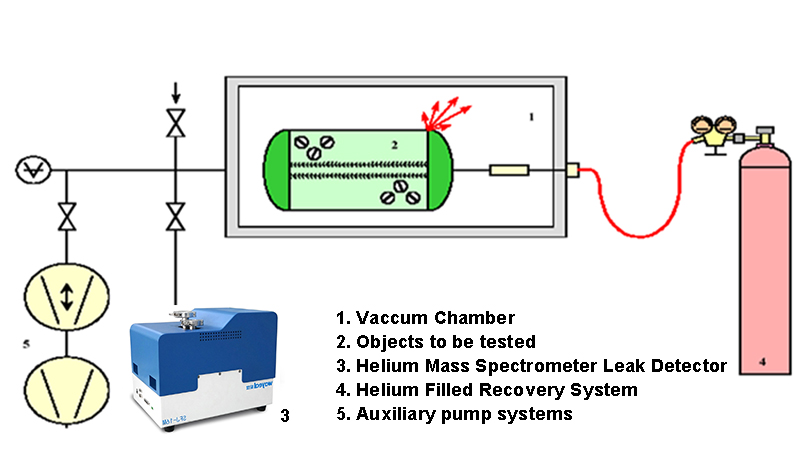

Vacuum Chamber Helium Leak Detection and Recovery System (external filling)
Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)
Sniffer Method
