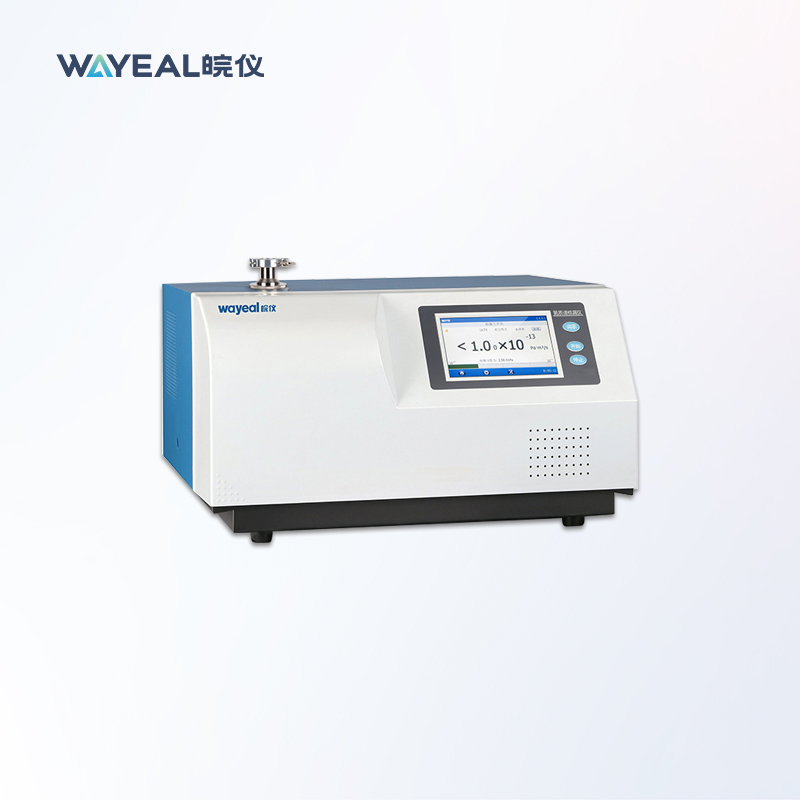

DN25KF Detection Port Helium Leak Detector With RS232 Communication Interface

Brand Name : Wayeal

Model Number : SFJ-261

Place of Origin : Anhui, China

Certification : CE

MOQ : 1 Unit

Price : Negotiate

Packaging Details : Wooden Case

Delivery Time : 35 days

Payment Terms : T/T, VISA

Supply Ability : 200 Units/Month

I/O Input output interface : 8 Inputs, 8 Outputs

Diamension : 592mm * 498mm *370mm

Start Time (min) : ≤2min

Response Time(s) : <1s

Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode : 5*10-13 Pa.m3/s

Leak rate display : Numbers, Bar Charts, Graphs

Communication Interface : RS232/485, LAN

Leak detection port : DN25KF

Contact Now

Description of Helium Leak Detector:

A helium leak detector also called a helium leak tester is an imperative to ensure no helium gas leaks of the precious gas exists in many instruments. There are 8 types of helium leak detection method, there are Spray Method, Vacuum Hood Method, Sniffer Method, Pressure Accumulation Method, Suction Cup Method, Bell Jar Method, Bombing Method, and Arbitrary Pressure Method.



Technical Parameters of Helium Leak Detector:

Product Name Helium Leak Detector SFJ-261
Minimum Detectable Leak rate (Pa. m3/s)/ Vacuum Mode 5.0*10-13 Pa·m3/s
Minimum Detectable Leak Rate (Pa.m3/s) / Sniffer Mode 5.0*10-9 Pa·m3/s
Maximum Detectable Leak Rate (Pa) 1500Pa
Respone Time (s) ＜1
Startup Time (min) ≤2
Detectable Quality 2,3,4(H2 , He-3, He-4)
HMI 7inch Color LCD Touch Screen
Ion Source 2pcs, Iridium coated yttrium oxide, automatic switching
Backing Pumps Rotary Vane Vacuum Pumps
I/O Input/ Output Interface 8 Inputs, 8 Outputs
Communication Interface RS232/485, USB*2
MES Interface Standard
Diamensions (W)*(D)*(H), mm 592mm*498mm*370mm
Leak Detection Port DN25 KF
Power Supply AC220V, 50Hz/60Hz
Operating Temperature 0~40°C
Language Chinese/English
Leakage Rate Display Figure, Bar Chart, Curve Chart


Applications of Helium Leak Detector:

This product is ideal for industries that require vacuum detection, its widely used in industries such as aerospace, automotive, semiconductor manufacturing, welding, diving, rocket propulsion, cryogenics, MRI, processing, meteorology, and research & development, these detectors play a vital role in maintaining the proper functioning and reliability of critical equipment.

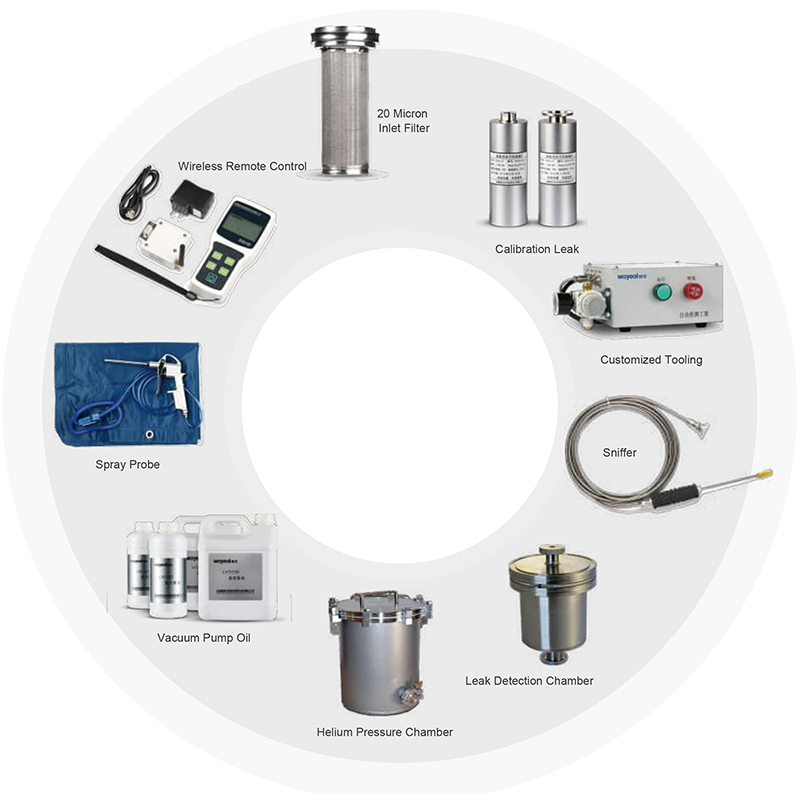

Optional Accessories of Helium Leak Detector:

DN25KF Detection Port Helium Leak Detector With RS232 Communication Interface
