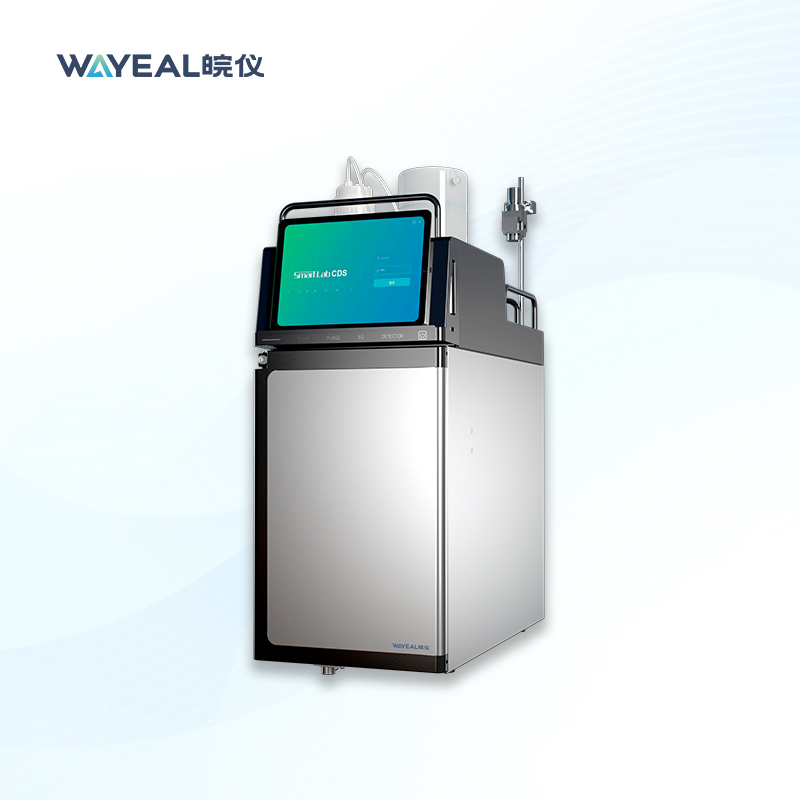

Description of Ion Chromatography Instrument IC6300:
The sixth generation ion chromatography system of Wayeal is an integrated intelligent ion chromatography system. The system is fully configured, powerful, simple layout and easy to operate. The new intelligent control system, equipped with an on-line eluent generator and a built-in PEEK quadratic gradient pump, which is your ideal experimental partner to help you achieve your experimental goals easily.
Technical Parameters of Ion Chromatography Instrument:
| 2pcs Column Capacity Ion Chromatography Instrument Flow Rate Range 0.001~3.000ml/min |
| Product Name | Ion Chromatography Instrument |
| Working Conditions | |
| Working Power | 220V, 50Hz |
| System Parameters | |
| Qualitative Repeatability | ≤1% |
| Quantitative Repeatability | ≤1% |
| Pump System | |
| Flow Rate | 0.001～15.000mL/min |
| Pressure Range | 0~42MPa |
| Flow Rate Setting Error | ＜0.2% |
| Flow Rate Stability | ＜0.2% |
| Eluent | |
| Flow Rate Range | 0.001~3.000ml/min |
| Eluent Concentration Range | KOH/MSA 0.1~100.0mM |
| Accuracy of Concentration | 0.1mM |
| Max Working Pressure | 21Mpa (3000psi) |
| Autosampler (AS2800 series) | |
| Quantitative Repeatability | Full loop injection ＜0.5%RSD |
| Linearity | ＞0.9995 |
| Injection Positions | 48 Positions |
| Working Temperature | 10~40°C |
| Sample Bottle | 5mL/100mL |
| Injection Volume | 10μL~400μL |
| Autosampler (AS3110 Series) | |
| Injection Positions | 120/64/92 positions for optional |
| Cooling Temperature | 4~30°C |
| Injector | Standard 500μL, options 250μL, 100μL, 2500μL |
| Column Oven | |
| Temperature Range | Room temperature, ＋5℃~70℃ |
| Temperature Control Stability | ≤0.1°C |
| Temperature Setting Error | 0.05°C |
| Column Capacity | 250mm and 150mm |
| Suppressor | |
| Dead Volume | 50μL |
| Suppression Capacity | 170ueq/min |
| Pressure Resistance | 3Mpa |
| Conductivity Detector | |
| Baseline Noise | ≤0.0005μS/cm |
| Baseline Drift | ≤0.0005μS·cm-1/30min |
| Min Detection Concentration(Cl) | ≤0.0005μg/mL |
| Min Detection Concentration (Li) | ≤0.0002μg/mL |
| Cell Volume | ≤0.4μL |
| Detector Resolution | 0.00238nS/cm |
| Temperature Setting Error | ±0.01°C |
| Ampere Detector | |
| Drive Voltage Range | -2.048V---2.048V |
| Drive Voltage Resolution | 0.001V |
| Single Input Range | Integral mode, 50pc---200uC |
| DC mode | 1pA---74uA |
| Cell Volume | ＜0.2μL |
| Min Detection Concentration | I: 0.001μg/mL |
Application Scenarios of Ion Chromatography Instrument
There are many occasions and scenarios where the Wayeal IC6300 Ion Chromatography Instrument can be applied.
In environmental monitoring, it can be used to analyze water samples for the presence of ions like heavy metals and pesticides.
In the food industry, it can detect the presence of additives and preservatives in food products.
In the pharmaceutical industry, it can measure the purity of drug substances and detect impurities. It can also be used in the chemical industry to analyze various ions in solutions and determine their concentrations.
The IC6300 is a versatile and reliable Ion Chromatography Instrument that can meet the needs of various industries. With its excellent performance, it can accurately and efficiently analyze a wide range of samples. If you need an Ion Chromatography Instrument, the Wayeal IC6300 is a great choice.
